160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator

1 SET
MOQ
USD10400 - USD27000
giá bán
160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Output Power: 160KW
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
Điểm nổi bật:

cummins diesel genset

,

emergency diesel generator

Thông tin cơ bản
Place of Origin: Jiangsu of China
Hàng hiệu: GPRO
Chứng nhận: ISO,CE Certification
Model Number: PF-DC220
Thanh toán
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Mô tả sản phẩm

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator

Model: PF-DC220

Prime Power

  200/160 (KVA/KW)

Standby Power

    215/172  (KVA/KW)

 Freqency

50HZ

Phase Number

3

Power factor

0.8 COSØ

Rated Voltage

400/230V

Net Weight

1700 KG

Dimention

  2394*980*1636mm(length*width*height)

Engine Mode

Cummins  6CTAA8.3-G2

Engine Speed

1500RPM

Fuel Comsuption

45 L/H

Cylinder Number

6

Bore/Stroke

114*135 mm

Capacity

8.3 L

Engine Air Flow

240 m3/min

Exhaust Gas Flow

32.58 m3/min

Exhaust Gas Temperature

640 °c

Total oil capacity

20 L

Total Coolant Capacity

 31 L

Alternator model

Leroy Somer LSA46.2L6/Stamford 274H

Starting Mode

24V Electronic

Run Time (50% Load)

10-12 hours

Coupling

SAE Disc-coupling

Phase/Poles

3 Phase 4 Wire

Excitation

Brushless,self-excited, AVR regulation

Insulation System

Class H

Protection Class

IP23

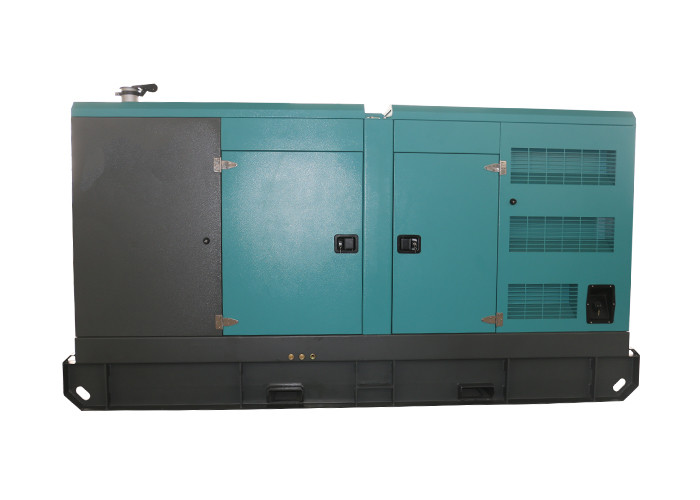

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 0

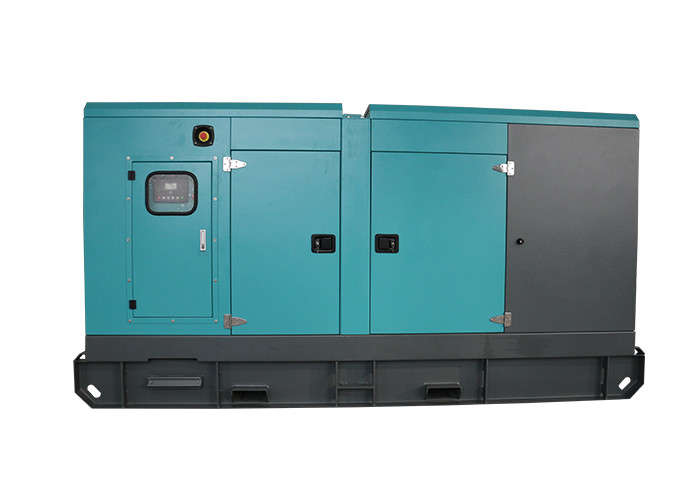

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 1
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

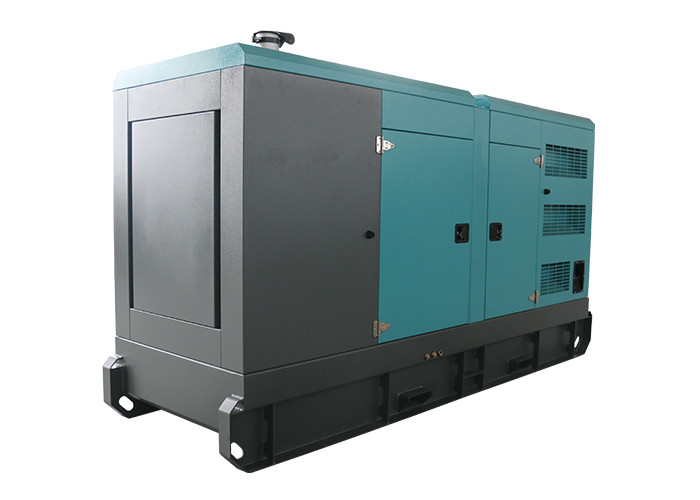

 160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 2
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

If have any questions, please contact us. Your inquiry would be appreciated.
