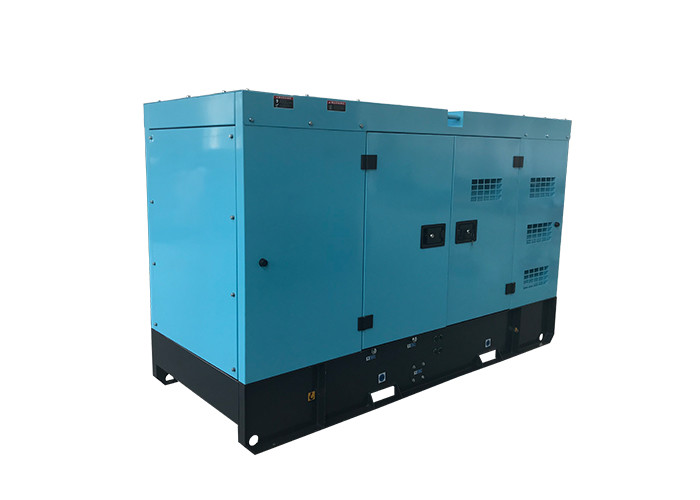

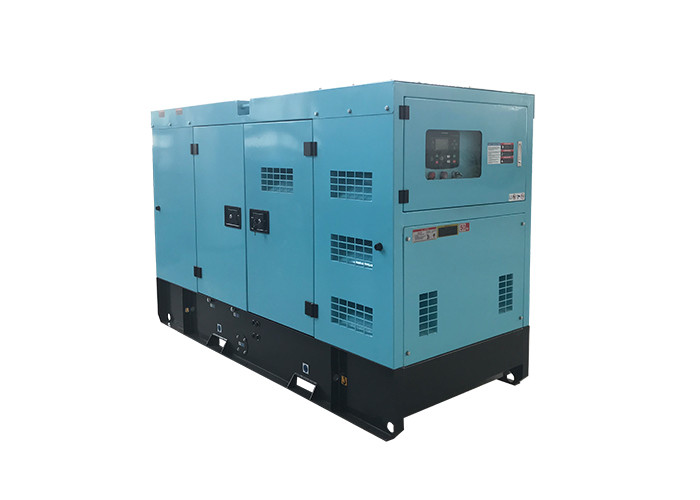

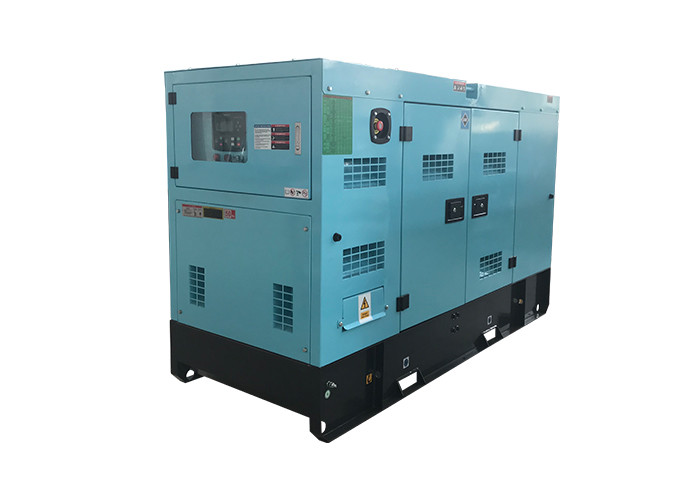

Standby Power 55 kva Cummins Diesel Generators Waterproof Low Noise 40kw

1 SET
MOQ
Negotiation
giá bán
Standby Power 55 kva Cummins Diesel Generators Waterproof Low Noise 40kw
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Output Power: 50KW 63KVA
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
Điểm nổi bật:

cummins diesel genset

,

emergency diesel generator

Thông tin cơ bản
Place of Origin: Jiangsu of China
Hàng hiệu: GPRO
Chứng nhận: ISO,CE Certification
Model Number: PF-DC55
Thanh toán
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Mô tả sản phẩm

Standby Power 55kva Cummins Waterproof diesel generator Low noise generators 40kw

1. Specification of Genset
Gensets Model PF-DC55
Prime/ Standby  Power 40kw/50kva    44kw/55kva
Rated Voltage 380/220V
Rated Frequency (HZ) 50
Rated Speed 1500rpm
Power Factor 0.8(lagging)
Dimensions (mm) (L×W×H) 1710x700x1340
Genset Weight (kg) 960
2. Specification of Diesel Engine
Engine Brand powered by Cummins engine
Engine Model 4BTA5.9-G2
Number of Cylinders 6
Cylinder Arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged, Water cooling
Fuel System PT type fuel pump, EFC
Bore×Stroke (mm×mm) 159 x 159
Displacement (Liter) 50.3
Compression Ratio 13.9:1
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Total lubrication System Capacity (L) 95
Fuel Consumption at 100% Load (L/H) 57
Starting Method DC24V electrical starting
3. Specification of Alternator
Alternator Brand Stamford / Meccalte
Alternator Model UCI 224E
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
4. Specification of Control Panel (with Deepsea Controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function.
The features of Deepsea controller:
Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory.


Standby Power 55 kva Cummins Diesel Generators Waterproof Low Noise 40kw 0



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional

Standby Power 55 kva Cummins Diesel Generators Waterproof Low Noise 40kw 1

Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
